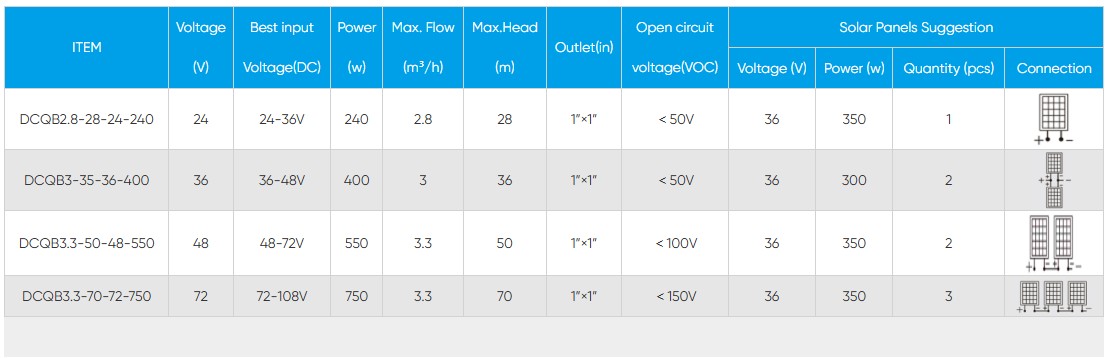

TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

TECHNICAL DATA OF SOLO DC INPUT SOLAR PERIPHERAL PUMP

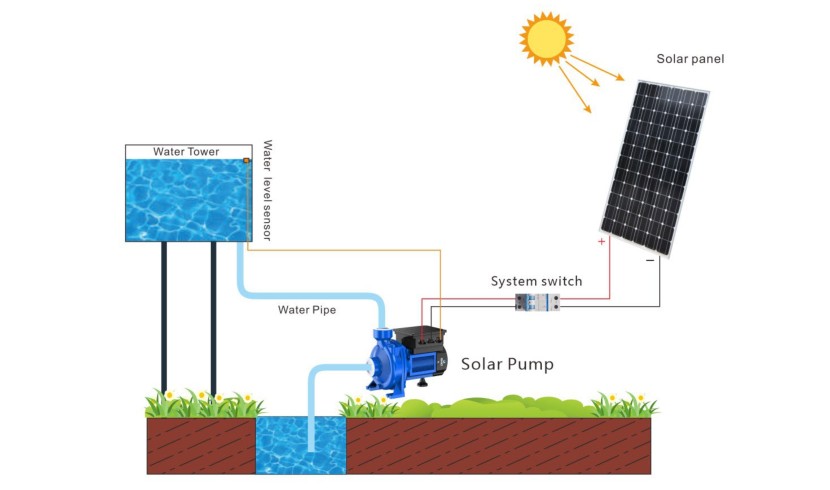

WIRING & APPLICATION OF DC PV PERIPHERAL SURFACE PUMP :

FEATURES OF DCHF SERIES SOLAR CENTRIFUGAL WATER PUMP:

Power input type : Solo Direct Current.

Less noisy & high efficiency operation. The solar pumps take permanent magnet Brushless motor. The Current of it is controlled electronically, as this results in less electro-magnettic nosie and high-efficiency performance.

Battery is not neccessary in the solar pumpping system. If a battery is planned to be to connected in it, a battery charger ir required.

The wiring between solar pump and controller is finished by manufacturer before go to market. The controller and pump is not seperatable. A system switch is equied to control the ON/OFF of the pumpping system.

FUNCTION OF SINO PUMP SOLAR SURFACE PUMP

MPPT.

Thermal protection.

Anti-dry run protection.

Anti-block protection.

Voltage & Current & Power protection.

PACKAGE OF SOLAR AC DC POWERED HYBRIDE PERIPHERAL PUMP:

New designed solar powered peripheral pump - 1 piece.

Accessary kits - 1 set

User's manual - 1 piece

SERVICES FOR OEM CUSTOMERS

Manage your own brand for solar pump business? Supported. Please provide company registered certificates.

Customized packing? Ordered quantity of solar water pumps >=100, Supported.

Choose an unique color only for your brand? Ordered quantity of solar peripheral pump & centrifugal pump & JET pump >=100 pieces, Supported. Order quantity of swimming pool pump series >=300pcs, Supported.

Payment methods & Terms: Negotiation.Trade terms: Choosing a way which is convinent for buyer.
